Swivel hooks

Place of Origin : China

Brand Name : GD

Certification : ISO9001-2008

Model Number : SH2

MOQ : 100

Price : $0.4-$5

Packaging Details : pallet,iron case or standard export wooden box

Delivery Time : 20days

Payment Terms : T/T

Contact Now

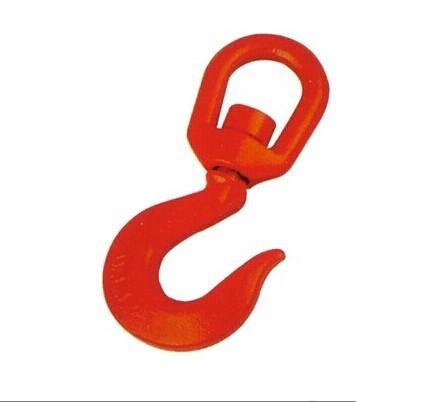

Swivel hooks
Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
322C-Carbon Steel.
322A-Hook Alloy Steel; Bail: Carbon Steel.
W.L.L. DIMENSIONS N.W. lbs
lbs inch
322C 322A B C E R S
3/4 1 15/16 1 1/4 15/16 4 15/32 3/8 0.75
1 1 1/2 1 15/16 1 1/2 1 1/32 5 9/32 1/2 1.25
1 1/2 2 1 5/8 1 3/4 1 3/4 6 1/64 5/8 2.25
2 3 1 9/16 1 3/4 1 3/4 6 3/8 5/8 2.57
3 4 1/2 1 3/4 2 2 7 13/32 3/4 4.75
5 7 2 5/16 2 1/2 2 1/2 9 19/32 1 10.29
7 1/2 11 2 3/8 2 3/4 2 3/4 11 1/8 1 1/8 16.25
10 15 2 13/16 3 1/8 3 1/8 11 15/16 1 1/4 23.25
15 22 4 4 4 16 5/6 1 1/2 54.2


Quality Swivel hooks wholesale

Swivel hooks Images
